Our Products

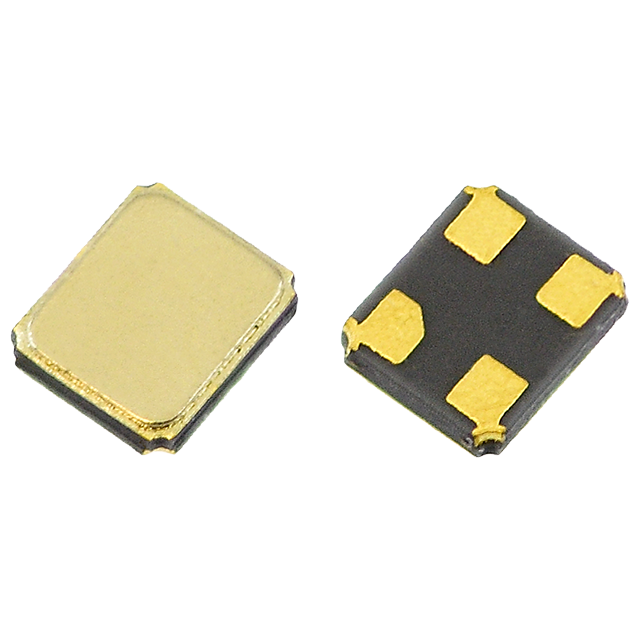

Quartz crystal resonators are thin slices of quartz that vibrate at a precise frequency when an AC signal of a matching frequency is applied to them. They are commonly used in oscillator circuits and can be found in everyday electronic devices for timing and frequency control. Their stable frequency and exceedingly high Q factor makes them ideal for use in clocks, watches, oscillators and other frequency-sensitive applications.

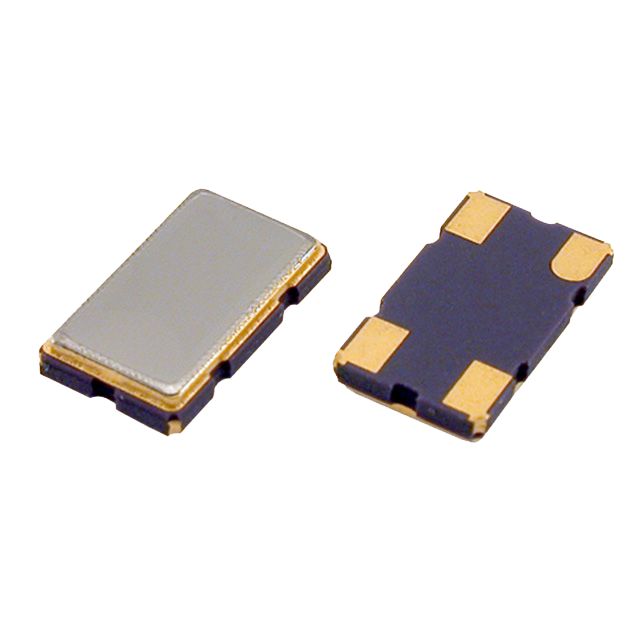

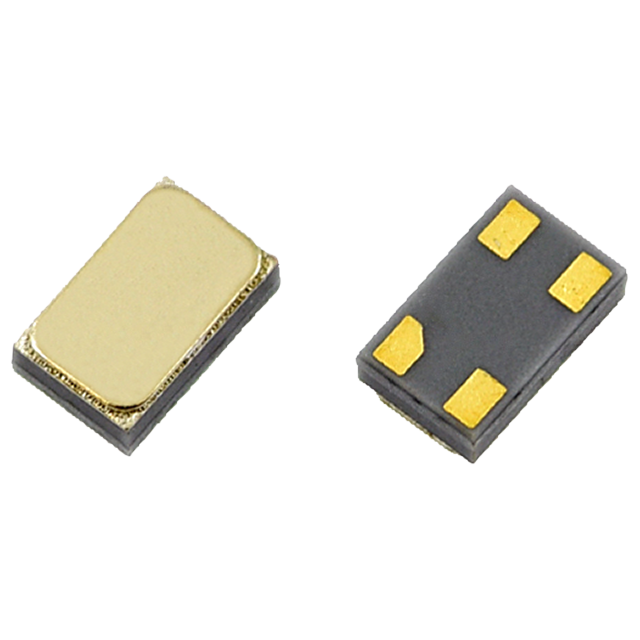

Oscillators, often referred to as Crystal Oscillators, Clock Oscillators or Standard Packaged Crystal Oscillators (SPXOs), are electronic circuits that use a quartz crystal as the resonant element to generate a highly stable frequency reference. They are widely used in applications requiring precise timing such as microprocessors, communication systems and GPS devices.

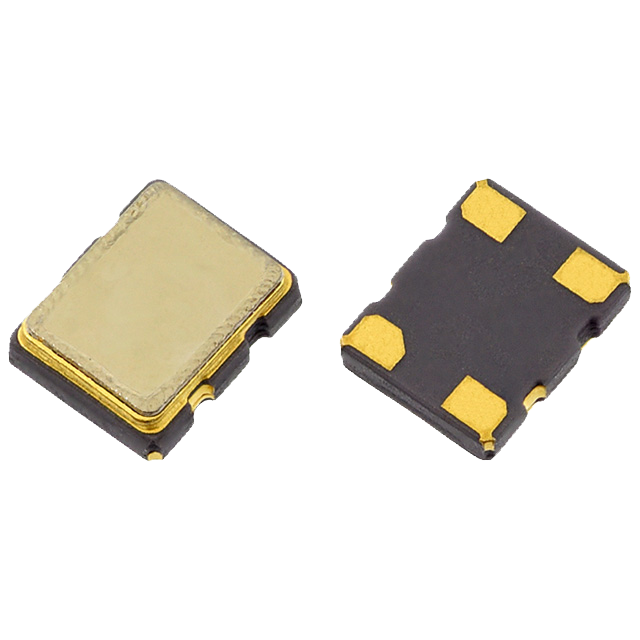

Voltage Controlled Crystal Oscillators (VCXOs) are specialised oscillators that allow fine-tuning (often referred to as 'pulling') of their frequency using an external control voltage for timekeeping applications where synchronisation with another source is needed such as FM and FSK radio transmitters. VCXOs are widely used in phase-locked loops (PLLs), telecommunications, military radios, optical networks and microwave backhaul systems.

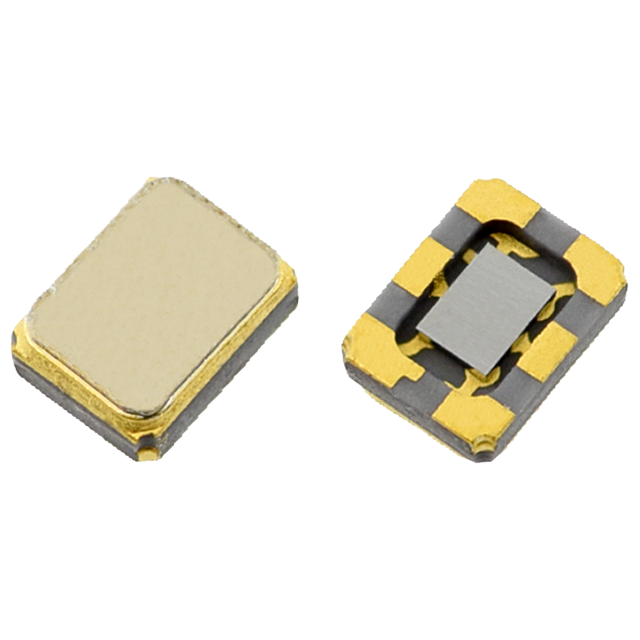

TCXOs (Temperature Compensated Crystal Oscillators) and VCTCXOs (Voltage-Controlled Temperature Compensated Crystal Oscillators) are both designed to maintain stable frequency output despite temperature fluctuations. TCXOs use built-in temperature compensation techniques to adjust for environmental changes, ensuring precise frequency stability. VCTCXOs offer the same temperature compensation benefits but with an added voltage control feature, allowing fine-tuning of the frequency output.

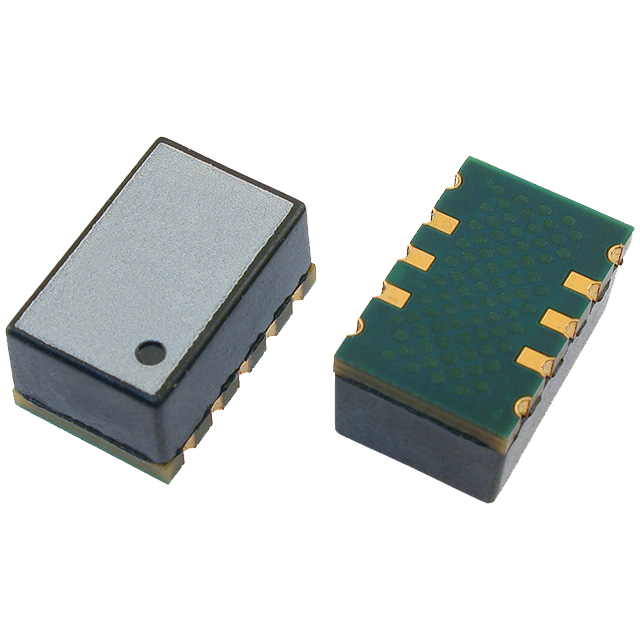

OCXOs (Oven-Controlled Crystal Oscillators) are high-precision oscillators designed to maintain exceptional frequency stability by keeping the quartz crystal at a constant temperature. Unlike TCXOs which compensate for temperature variations, OCXOs use a built-in heating element to ensure minimal frequency drift. They are ideal for applications requiring extremely accurate frequency control such as telecommunications, broadcasting and high-performance computing.

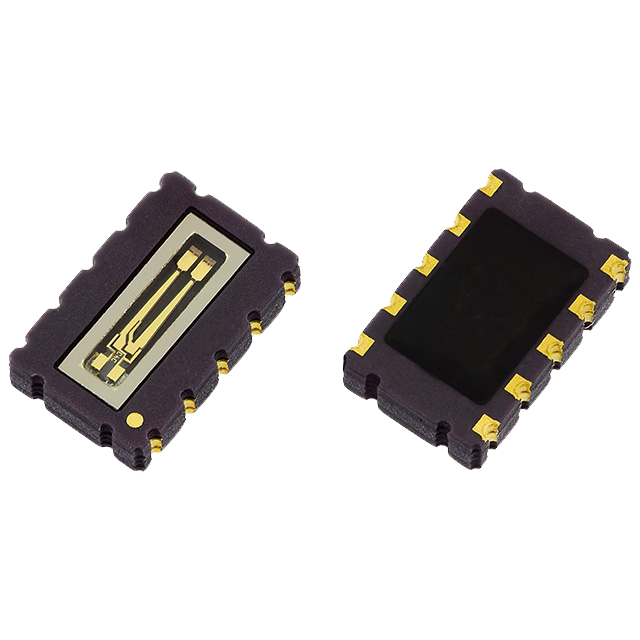

Real-Time Clock (RTC) modules are specialised components designed to keep track of time even when the main system is powered off. To achieve their exceptional accuracy and ultra-low power consumption, RTCs utilise quartz tuning fork crystal oscillators. These enable them to maintain reliable timekeeping while drawing minimal battery power, even when the device they’re part of is turned off. They are commonly used in applications requiring precise timekeeping such as embedded systems, data loggers and industrial automation. They typically communicate via Inter-Integrated Circuit (I2C) or Serial Peripheral Interface (SPI), making them easy to integrate with microcontrollers.

Crystal filters are specialised electronic filters that use quartz crystals as resonator components to allow certain frequencies to pass while attenuating unwanted signals. They are widely used in radio receivers, communication systems and signal processing applications due to their high Q factor and precise frequency control. Crystal filters provide sharp band-pass characteristics, making them ideal for filtering out interference.

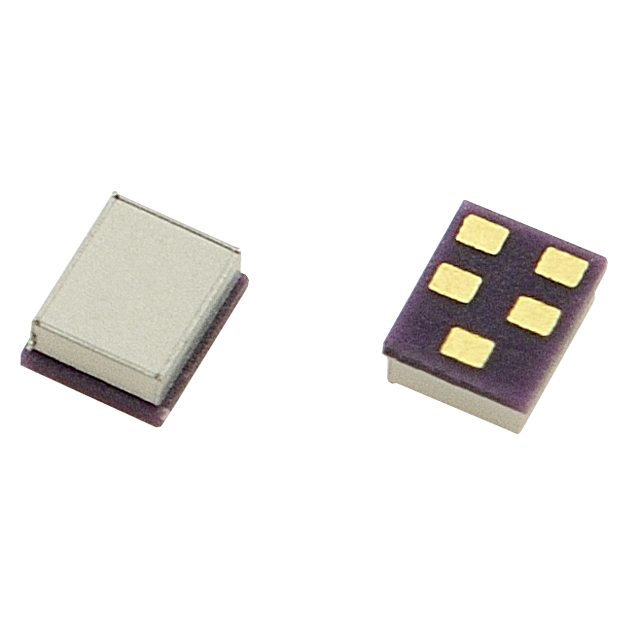

Surface Acoustic Wave (SAW) filters are specialised Radio Frequency (RF) filters that use acoustic waves traveling along the surface of a piezoelectric material to selectively filter signals. Their small footprint makes them suitable for mobile and embedded applications. They are widely used in wireless communication systems, radar applications and signal processing due to their compact size, high selectivity and low insertion loss.

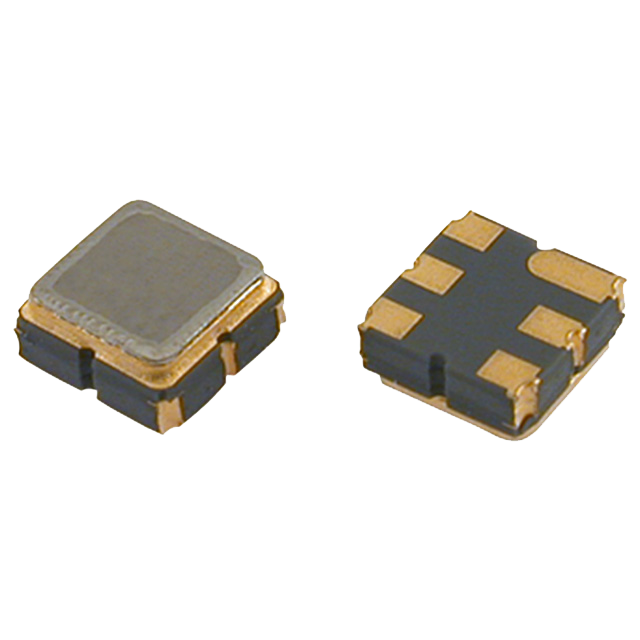

Surface Acoustic Wave (SAW) resonators are specialised components, similar to quartz crystals, which use acoustic waves traveling along the surface of a piezoelectric material to generate highly stable frequency signals. They are widely used in wireless communication systems, radar applications and signal processing due to their compact size, high Q factor and precise frequency control. They are commonly used in a variety of electronic applications such as car key fob transmitters where a low cost and compact circuit is needed above the frequency range achievable with a crystal.

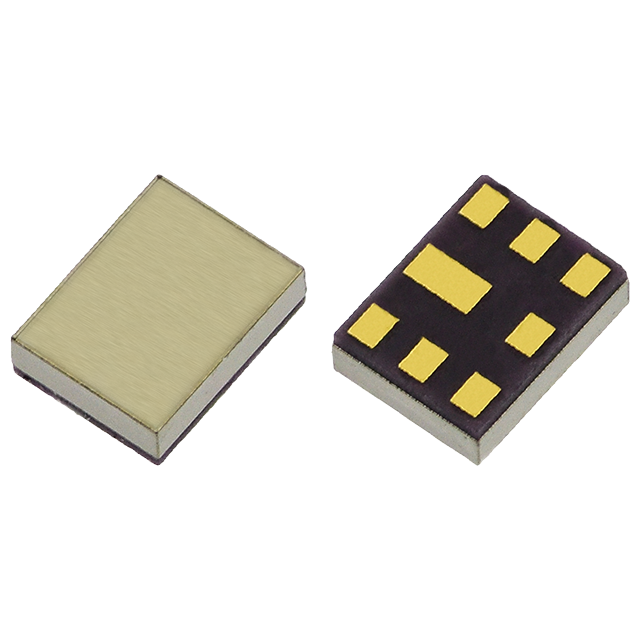

Surface Acoustic Wave (SAW) duplexers are specialised Radio Frequency (RF) components that enable separate signals of two different frequency bands on the same connection for simultaneous transmission and reception in wireless communication systems. Typically, they are used to allow a transmitter and a receiver to share the same antenna. They are commonly used in Frequency Division Duplexing (FDD) systems such as Long-Term Evolution (LTE) and Universal Mobile Telecommunications System (UMTS) to allow a transmitter and receiver to share the same antenna while maintaining signal separation.
