2mm quartz crystal package

MS1V-T1K

SM Watch Crystal with Square Profile

  • Unique square section case for pick & place
  • Large stock held at all times
  • High shock & vibration resistance
  • Wide temperature range
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Frequency
Calibration tolerance
Circuit condition
Quantity / Special Request

Please specify the quantity you require below.

The MS1V-T1K is supplied on tape and reel. 2k or 8k pcs per reel are the standard T&R pack sizes for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

The MS1V-T1K crystal features unique square profile package with gold flashed leads, ideal for pick and place, and is available at low frequencies between 32.0 ~ 200kHz.

Featuring a range of calibration tolerance and circuit condition options, high shock and vibration resistance, and excellent ageing characteristics, this crystal is ideal for a range of applications requiring a robust crystal solution.

If you need a square profile formed lead crystal but are looking for a smaller product please consider the MS3V-T1R which features ultra-miniature 1.48mm footprint.

Specifications
Frequency range 32.0 ~ 200kHz
Dimensions 8.1 x 2.0 x 2.0mm
Standard frequency 32.768kHz
Operating temperature range -40 to +85°C
Storage temperature range -55 to +125°C
Static capacitance (C0) 0.9pF typ
Motional capacitance (C1) 2.1fF typ
Equivalent series resistance 60kΩ max @ 25°C
90kΩ max after reflow
Ageing ±3ppm max first year
Drive level 1.0µW max
Turnover temperature (T0) +25°C ±5°C
Frequency / temp coefficient -0.035ppm/°C2 ±10% typ
Shock resistance ±5ppm max 5,000g, 0.3ms, ½ sine
Vibration resistance ±5ppm max 20g, 10.0 ~ 2,000Hz
Soldering conditions 260°C, 20sec max
Termination Gold flashed leads, 2.54mm pitch
Net mass 109mg

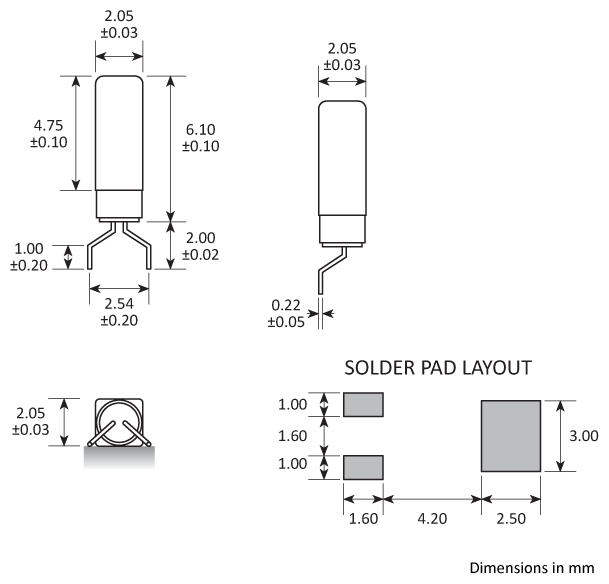

Package Drawing
Package footprint and pad configuration drawing for the Golledge MS1V-T1K Crystal showing full dimensions.
Ordering Information

To request a quotation for the MS1V-T1K please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Tape & Reel Specification
Tape and Reel specifications for the GTXO-C77V

A:254 B:16 C:9 D:3.1 E:4 F:2.1 G:80 H:25

Handling & Storage

ESD icon Human Body Model (HBM) 1A (250V to <500V)

MSL Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Press seal

Compliance

Please refer to our DOCUMENTS section for more information.

ROHS icon RoHS compliant with no exemptions.

REACH icon REACH compliant.

Conflict minerals icon Free of conflict minerals.

Halogen free icon Free from halogens.

Ozone depletion icon Free from ozone-depleting substances.
