GTXO-251V

GTXO-251V

1.8V ~ 3.3V Ultra-tight Stability VCTCXO for AIS

  • Ideally suited for AIS and GPS applications
  • ±0.5ppm frequency stability option
  • Wide frequency pullability options
  • Ultra-miniature 2520 SM package
Configurable Options
ParameterOption Code
Frequency
Frequency stability
Temperature range
Frequency adjustment
Supply voltage (VDD)
Operable from 1.8V ~ 3.3V, please specify test voltage:
Quantity / Special Request

Please specify the quantity you require below.

The GTXO-251V is supplied on tape and reel. 1k or 3k pcs per reel are the standard T&R pack sizes for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

Specifically created for AIS applications, the GTXO-251V with wide frequency pullability of ±15ppm is also suitable for a range of other applications including GPS. The GTXO-251V features frequency stability as tight as ±0.5ppm, fast start up time of 3ms maximum, voltage controlled frequency adjustment, and a miniature 2.5 x 2.0mm package.

The GTXO-251V is operable over the 1.8V-3.6V range, and requires low supply current of 1.5~2.0mA.

This TCXO also features good phase noise characteristics and superbly low ageing of only ±1.0ppm maximum (first year).

Specifications
Frequency range 16.0 ~ 52.0MHz
Dimensions 2.5 x 2.0 x 0.8mm
Storage temperature range -40 to +85°C
Supply voltage stability ±0.2ppm, VDD ±5%
Load stability ±0.2ppm, ZL ±10%
Frequency slope ±0.05ppm/°C over -30+85°C
Ageing ±1.0ppm max first year
Supply voltage (VDD) Operable from 1.8V ~ 3.3V
Supply current 1.5mA max (up to 26MHz)
2.0mA max (26 ~ 32MHz)
2.5mA max (32 ~ 52MHz)
Output waveform Clipped sine, 0.8V p-p
Test load (ZL) 10kΩ // 10pF
Start up time 3ms max
Harmonics -5dBc max
Phase noise -135dBc/Hz @ 1kHz
Frequency tolerance @ 25°C ±2.0ppm max, 60mins after reflow

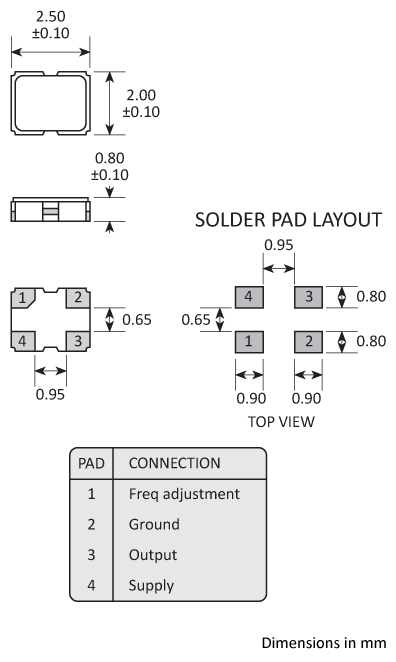

Package Drawing
Footprint
Ordering Information

To request a quotation for the GTXO-251V please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Soldering Profile
Solder reflow profile
Tape & Reel Specification
Tape and Reel specifications
Handling & Storage

ESD icon Human Body Model (HBM) 1A (250V to <500V)

MSL Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Ceramic body with gold-plated pads
Metal lid, seam sealed

Compliance

PB free icon Lead-free (< 0.1% by weight )

ROHS icon RoHS compliant with no exemptions. See our declaration

REACH icon REACH compliant. See our statement

Conflict minerals icon Free of conflict minerals. See our declaration

Halogen free icon Free of Halogens. See our declaration

Ozone depletion icon Free of Ozone-depleting substances. See our declaration
