6-pad 5032 oscillator

MCSO2LV

3.3V Low Jitter Oscillator with LVDS Output

  • LVDS output
  • Military temperature range -55+125°C option
  • Low jitter
  • Excellent shock & vibration resistance
  • Optional tinned pads (Ag/Cu/Zn)
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Frequency
Frequency stability
* see note below
T
Operating temperature range
A
B
C
Enable / disable function
E
Terminations
T
Quantity / Special Request

Please specify the quantity you require below.

The MCSO2L is available supplied either on tape and reel or packaged within trays. T&R standard pack size is 250~1000pcs and standard tray size is 128pcs per tray. Partial quantities may be supplied on tape (no reel), partial trays, or in bulk.

Product Description

The MCSO2LV 3.3V 6-pad oscillator produces LVDS output and has excellent shock and vibration resistance. This oscillator offers very good frequency stability options over extended-55 to +125°C operating temperature range, perfect for defence and similar applications.

The MCSO2LV also features good jitter specifications of 0.3ps maximum (1.0kHz-1.0MHz), and is available with a choice of pad termination materials, ideal for material-sensitive applications and manufacturing processes.

Specifications
Frequency range 40.0 ~ 130MHz
Dimensions 5.0 x 3.2 x 1.7mm
Supply voltage (VDD) +3.3V (±5%)
Storage temperature range -65 to +125°C
Supply current 10mA max (@40.0MHz)
15mA max (@100MHz)
25mA max (@130MHz)
Output LVDS
Output load 100Ω
Logic levels (typ) ‘0’ level = +1.1V
‘1’ level = +1.4V
Start up time 5ms max
Waveform symmetry 45:55 max @ 50%VDD
Jitter RMS 0.3ps max (1.0kHz ~ 1.0MHz)
Rise / fall time 1ns max (20% - 80%)
Phase noise (typ @ 100MHz) -70dBc/Hz @ 10Hz
-100dBc/Hz @ 100Hz
-125dBc/Hz @ 1kHz
-145dBc/Hz @ 10kHz
-150dBc/Hz @ 100kHz
Shock resistance 5,000g, 0.3ms, ½ sine
Vibration resistance 50g rms 10.0 ~ 2,000Hz
Soldering condition 260°C, 10 sec max

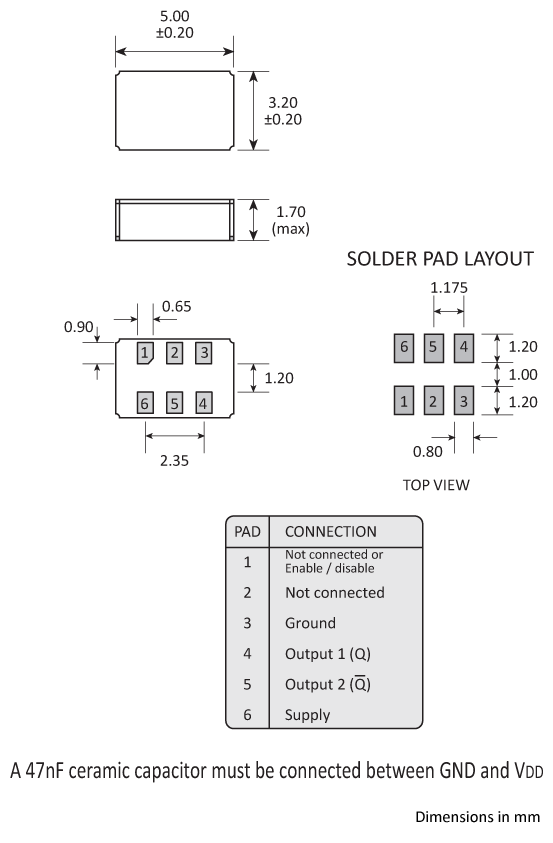

Package Drawing
Package footprint and pad configuration drawing for the Golledge MCSO2L Oscillator showing full dimensions.
Ordering Information

To request a quotation for the MCSO2L please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Enable / Disable Function
Input (pad 1)Output (pads 4 & 5)
Open Enabled
'1' level Enabled
'0' level No clock

Reaction time <1µs

Handling & Storage

ESD icon Human Body Model (HBM) 1A (250V to <500V)

MSL Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Ceramic base and lid

Compliance

PB free icon Lead-free (< 0.1% by weight )

ROHS icon RoHS compliant with no exemptions. See our declaration

REACH icon REACH compliant. See our statement

Conflict minerals icon Free of conflict minerals. See our declaration

Halogen free icon Free of Halogens. See our declaration

Ozone depletion icon Free of Ozone-depleting substances. See our declaration
