GXO-U129S
5V 7x5mm Oscillator with Tight Stability
- Tight frequency stability
- Enable / disable tristate function
- Industry standard SM footprint
Specifications
| Frequency range |
1.8 ~ 50.0MHz |
| Dimensions |
7.5 x 5.0 x 1.5mm |
| Storage temperature range |
-55 to +125°C |
| Supply voltage (VDD) |
+5.0V (±0.5V) |
| Supply current) |
22mA max |
| Logic levels |
‘0’ level = 10%VDD max ‘1’ level = 90%VDD min |
| Start up time |
5ms max |
| Waveform symmetry |
45:55 max |
| Driving ability |
10 LSTTL 15pF CMOS |
| Rise / fall time |
5ns max |
| Enable / disable function |
Tristate (control via pad 1) 100ns / 100ns |

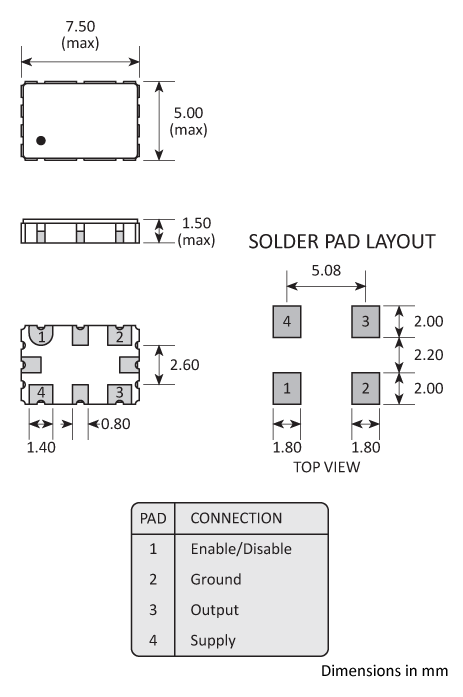

Package Drawing
Ordering Information
To request a quotation for the GXO-U129S please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.
Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.
If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.
Enable / Disable Function
| Input (pad 1) | Output (pad 3) |
|---|---|
| Open | Enabled |
| '1' level | Enabled |
| '0' level | High Impedance |
Tape & Reel Specification
A:255 B:16 C:7.9 D:5.4 E:8 F:2.5 G:80 H:21
Handling & Storage
Human Body Model (HBM) 1A (250V to <500V)
Moisture Sensitivity Level (MSL): 1 (or not applicable)
Construction
Ceramic base with metal lid
Compliance
Lead-free (< 0.1% by weight )
RoHS compliant with no exemptions. See our declaration
REACH compliant. See our statement
Free of conflict minerals. See our declaration
Free of Halogens. See our declaration
Free of Ozone-depleting substances. See our declaration
