GXO-U115G

1.8V 5x3mm Oscillator with Extremely Low Current Consumption

Frequency range	1.8 ~ 125MHz

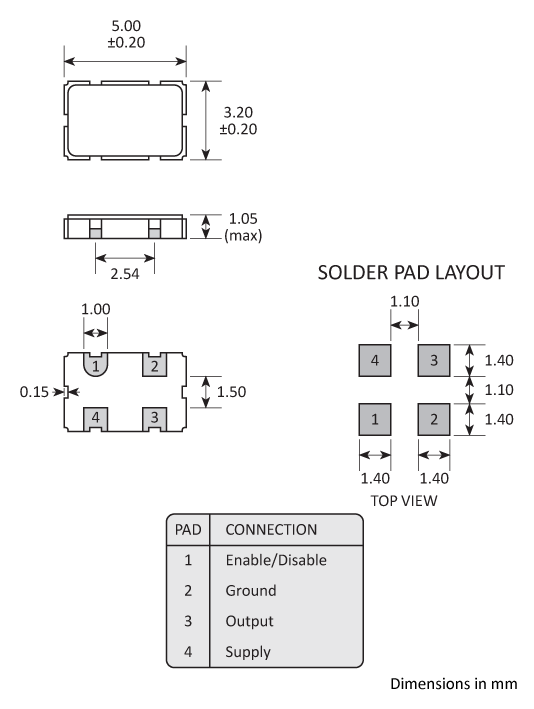

Dimensions	5.0 x 3.2 x 1.05mm
Storage temperature range	-55 to +125°C
Supply voltage (VDD)	+1.8V (±10%)
Supply current	7mA max (1.8 ~ 32.0MHz) 15mA max (>32.0 ~ 50.0MHz) 28mA max (>50.0 ~ 125MHz)
Logic levels	‘0’ level = 10%VDD max ‘1’ level = 90%VDD min
Start up time	10ms max
Waveform symmetry	40:60 max @ 50%VDD
Driving ability	15pF CMOS
Rise / fall time	5ns max (1.8 ~ 32.0MHz) 3.5ns max (>32.0 ~ 50.0MHz) 3.0ns max (>50.0 ~ 125MHz)
Enable / disable function	Tristate (control via pad 1)
Standby current	10µA

To request a quotation for the GXO-U115G please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Input (pad 1)	Output (pad 3)
Open	Enabled
'1' level	Enabled
'0' level	High Impedance

Human Body Model (HBM) 1A (250V to <500V)

Moisture Sensitivity Level (MSL): 1 (or not applicable)

Ceramic base with metal lid

Please refer to our DOCUMENTS section for more information.

Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions.

REACH compliant.

Free of conflict minerals.

Free from halogens.

Free from ozone-depleting substances.
