GXO-U102H
3.3V DIL-8 Package Leaded Oscillator with High Drive Capability
- Standard frequencies held in stock
- Industrial temperature range option
- Tight tolerance options
Specifications
| Frequency range |
125kHz ~ 200MHz |
| Dimensions |
13.0 x 13.0 x 5.7mm |
| Package style |
8 pin DIL (half size) |
| Storage temperature range |
-55 to +125°C |
| Supply voltage (VDD) |
+3.3V (±5%) |
| Supply current |
10mA max (125kHz ~ 0.99MHz) 15mA max (1.0 ~ 5.0MHz) 20mA max (>5.0 ~ 24.0MHz) 25mA max (>24.0 ~ 70.0MHz) 35mA max (>70.0 ~ 90.0MHz) 45mA max (>90.0 ~ 160MHz) |
| Driving ability |
30pF CMOS / 5 LSTTL |
| Output voltage |
‘0’ level = 0.4V max ‘1’ level = 90% VDD min |
| Start up time |
10ms max |
| Rise / fall time |
6ns max (<80.0MHz) 5ns max (>80.0MHz) |
| Waveform symmetry @ 50% VDD |
45:55 max (<50.0MHz) 40:60 max (>50.0MHz) |
| Net mass |
943mg |

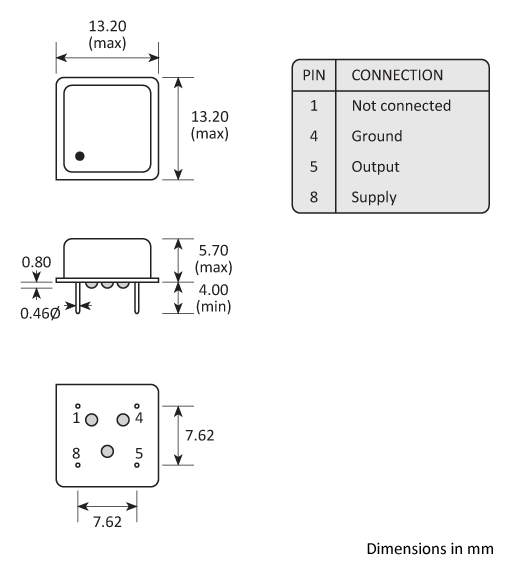

Package Drawing
Ordering Information
To request a quotation for the GXO-U102H please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.
Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.
If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.
Handling & Storage
Human Body Model (HBM) 1A (250V to <500V)
Moisture Sensitivity Level (MSL): 1 (or not applicable)
Construction
Resistance weld
Compliance
Please refer to our DOCUMENTS section for more information.
Lead-free (< 0.1% by weight )
RoHS compliant with no exemptions.
REACH compliant.
Free of conflict minerals.
Free from halogens.
Free from ozone-depleting substances.
