GXO-7504S
5.0V CMOS Oscillator

Competitive pricing for high volumes
Industry standard footprint
Ceramic package with metal lid
Enable / disable tristate function

DOWNLOAD PDF

Configurable Options
ParameterOption Code
Frequency
kHz MHz GHz
Frequency stability ^* see note below
Any
±100ppm max
±50ppm max		B
±25ppm max		A
Operating temperature range
Any
-20 to +70°C
-40 to +85°C		I
-40 to +125°C		H

Quantity / Special Request

Please specify the quantity you require below.

The GXO-7504S is supplied on tape and reel. 1k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Specifications

Frequency range	0.5 ~ 160.0MHz
Dimensions	7.0 x 5.0 x 1.6mm
Storage temperature range	-55 to +125°C
Supply voltage (V_DD)	+5.0V (±10%)
Supply current	23mA max (≤16.0MHz) 35mA max (>17.0 ~ 80.0MHz) 80mA max (>81.0 ~ 160.0MHz)
Logic levels	‘0’ level = 10%V_DD max ‘1’ level = 90%V_DD min
Start up time	10ms max
Waveform symmetry	45:55 @ 50%V_DD
Driving ability	15pF CMOS
Rise / fall time	5ns max
Enable / disable function	Tristate (control via pad 1)
Ageing	±5ppm / year max

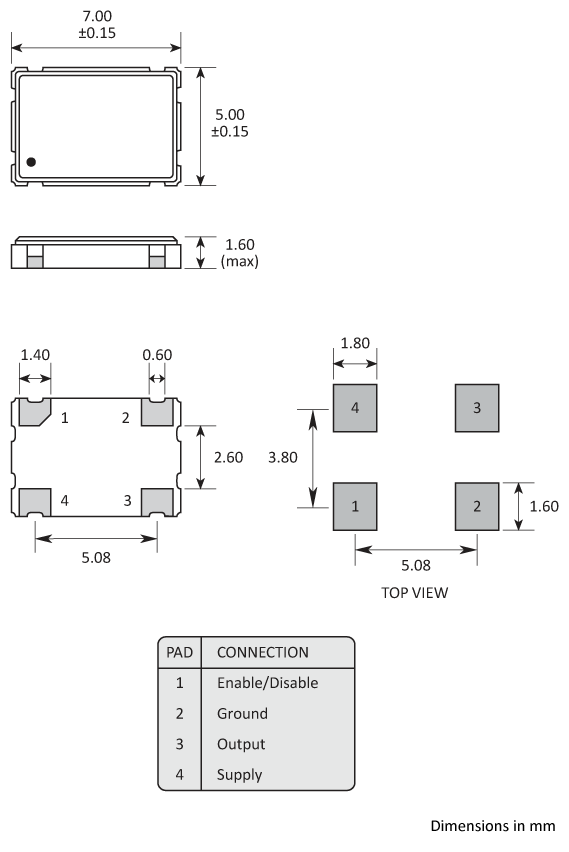

Package Drawing

Package footprint and pad configuration drawing for the Golledge GXO-7504 Oscillator showing full dimensions.

Ordering Information

To request a quotation for the GXO-7504S please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.
