GXO-3204E
1.2V CMOS Oscillator

Competitive pricing for high volumes
Miniature ceramic package with metal lid
Industry standard footprint
Enable / disable tristate function

DOWNLOAD PDF

Configurable Options
ParameterOption Code
Frequency
kHz MHz GHz
Frequency stability ^* see note below
Any
±100ppm max
±50ppm max		B
±25ppm max		A
Operating temperature range
Any
-20 to +70°C
-40 to +85°C		I
-40 to +125°C		H

Quantity / Special Request

Please specify the quantity you require below.

The GXO-3204E is supplied on tape and reel. 1k or 3k pcs per reel are the standard T&R pack sizes for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Specifications

Frequency range	20.0 ~ 50.0MHz
Dimensions	2.5 x 2.0 x 1.0mm
Storage temperature range	-55 to +125°C
Supply voltage (V_DD)	+1.2V (±10%)
Supply current	20mA max
Logic levels	‘0’ level = 10%V_DD max ‘1’ level = 90%V_DD min
Start up time	10ms max
Waveform symmetry	45:55 @ 50%V_DD
Driving ability	15pF CMOS
Rise / fall time	10ns max
Enable / disable function	Tristate (control via pad 1)
Ageing	±5ppm / year max

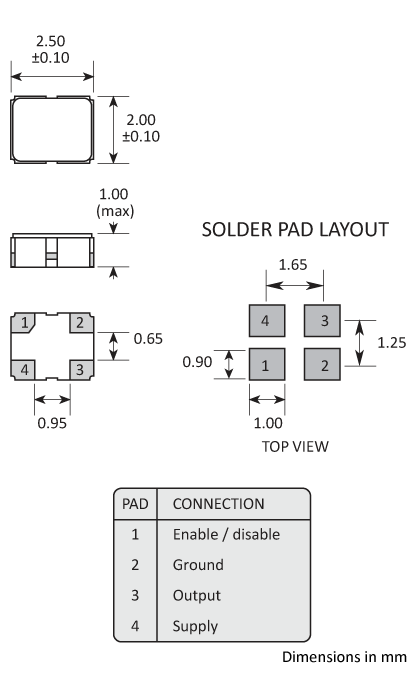

Package Drawing

Package footprint and pad configuration drawing for the Golledge GXO-3204 Oscillator showing full dimensions.

Ordering Information

To request a quotation for the GXO-3204E please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.
