GVXO-C58L

GVXO-C58L

3.3V VCXO with LVCMOS output and wide pulling range

  • Frequencies up to 250MHz
  • Ultra low noise
  • Wide pulling range
  • LVCMOS output
  • Enable / disable tristate function
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Frequency
Frequency pullability
Frequency stability
* see note below
B
C
D
Operating temperature range
I

* Frequency stability is inclusive of calibration @25°C, operating temperature range, supply voltage change, load change and first year ageing.

Quantity / Special Request

Please specify the quantity you require below.

Specifications
Frequency range 15.0 ~ 250MHz
Dimensions 5.0 x 3.2 x 1.6mm
Voltage control (VCTL) +1.65V ±1.35V, 10% linearity
Storage temperature range -40 to +85°C
Supply voltage (VDD) +3.3V (±10%)
Supply current 90mA max
Output CMOS
Waveform symmetry 45:55 max @ 50%Vp-p
Rise / fall time 1.2ns max (20% ~ 80%Vp-p)
Startup time 8ms max
Phase jitter 300fs max (12kHz ~ 20MHz)
Enable / disable function Tristate (control via pad 2)

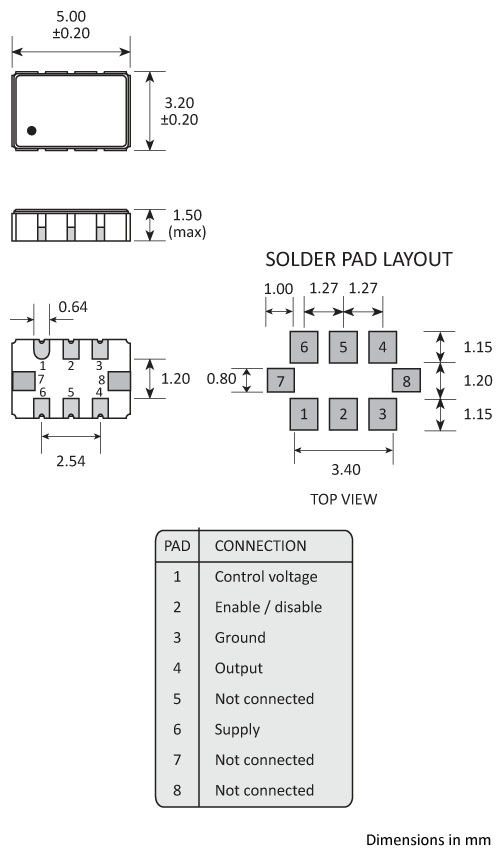

Package Drawing
8-pad 5.0 x 3.2 x 1.5mm (5032) package
Ordering Information

To request a quotation for the GVXO-C58L please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Enable / Disable Function
Input (pad 2)Output (pad 4)
Open Enabled
'1' level Enabled
'0' level High Impedance
Soldering Profile
Solder reflow profile for the GTXO-C77V

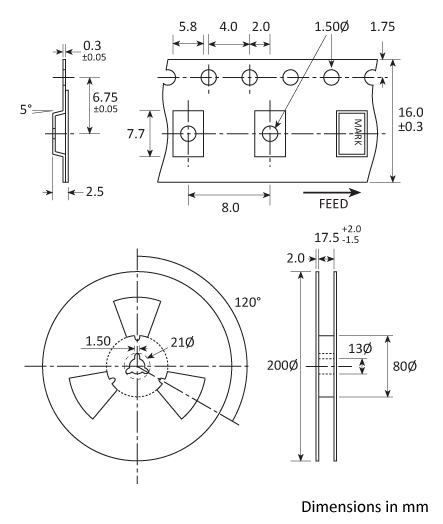

Tape & Reel Specification
Tape and Reel specifications
Construction

Ceramic body with gold-plated pads, Metal lid, seam sealed
