GTXO-C86V

CMOS VCTCXO High Precision High Temperature

Frequency range	10.0 ~ 52.0MHz

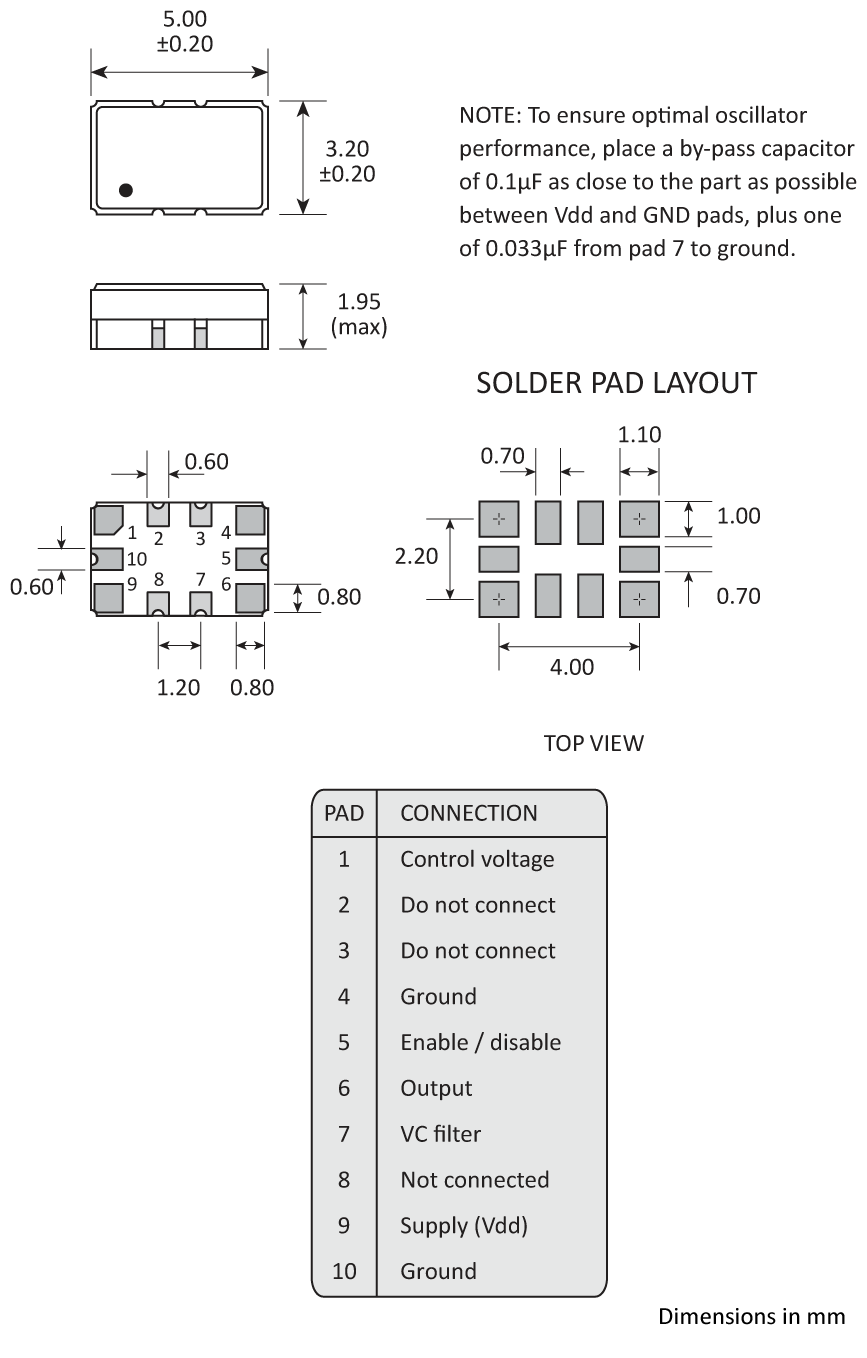

Dimensions	5.0 x 3.2 x 1.95
Storage temperature range	-55 to +125°C
Supply voltage stability	±0.1ppm, VDD ±5%
Ageing	±1.0ppm max first year
Supply current	7.5mA max
Driving ability	15pF CMOS
Waveform symmetry	45:55 @ 50%VDD
Logic levels	‘0’ level = 10%VDD max ‘1’ level = 90%VDD min
Start up time	5ms max
Rise / Fall time	3.0ns max
Frequency adjustment	±5ppm, +1.5V ±1.0V
Phase noise (typ @ 20.0MHz)	-122dBc/Hz @ 100Hz -142dBc/Hz @ 1kHz -154dBc/Hz @ 10kHz -157dBc/Hz @ 100kHz -159dBc/Hz @ 1MHz
Frequecny Tolerance @25°C	±1.0ppm max

To request a quotation for the GTXO-C86V please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Once we've received your request our expert team will then produce a quotation tailored to meet your needs using the option codes you've selected.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

A:180 / B:13.0 / C:5.3 / D:3.5 / E:8.0 / F:1.9 / G:61

Human Body Model (HBM) 1A (250V to <500V)

Moisture Sensitivity Level (MSL): 1 (or not applicable)

Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions. See our declaration

REACH compliant. See our statement

Free of conflict minerals. See our declaration

Free of Halogens. See our declaration

Free of Ozone-depleting substances. See our declaration
