4-pad 5x3x1mm SMT TCXO package

GTXO-83V

2.4V ~ 3.6V SM VCTCXO with Clipped Sine Output

  • Low power consumption
  • Supply voltage from 2.4V ~ 3.6V
  • Miniature SM package
  • Excellent frequency stability
Configurable Options
ParameterOption Code
Frequency
Frequency stability
K
J
H
G
F
Temperature range
R
C
N
S
I
Quantity / Special Request

Please specify the quantity you require below.

The GTXO-83V is supplied on tape and reel. 1k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

The GTXO-83V TCXO solution features a miniature 5.0 x 3.2mm package and offers frequency stability as tight as ±1.0ppm at frequencies from 9.5 ~ 45.0MHz, in addition to ±8ppm minimum frequency adjustment via voltage control. The GTXO-83T operates on specification at any supply voltage from 2.4V to 3.6V.

Internal improvements have been made to the GTXO-83V which will take effect for new designs as of Q1 2020, and which enhance the phase noise and frequency stability performance of this component, whilst limiting the maximum operating supply voltage to 3.6V and limiting the lowest available frequency to 9.5MHz. All other product parameters are enhanced or remain unchanged by the replacement IC. There are no changes to form or fit.

Previously the GTXO-83V was available with maximum supply voltage of 5.0V and at frequencies down to 6.0MHz. PCN200108 explains these changes. Please contact our team today for more information on +44 1460 256 100.

Specifications
Frequency range 9.5 ~ 45.0MHz
Dimensions 5.0 x 3.2 x 1.15mm
Storage temperature range -40 to +85°C
Supply voltage stability ±0.2ppm, VDD ±5%
Load stability ±0.2ppm, ZL ±10%
Ageing ±1.0ppm max first year
Supply voltage (VDD)
* see note below
+2.4V ~ +3.6V
Supply current 1.5mA max (9.5 ~ 20.0MHz)
2.0mA max (20.0 ~ 32.0MHz)
2.5mA max (32.0 ~ 45.0MHz)
Output waveform Clipped sine, 0.8V p-p, +DC offset
Test load (ZL) 10kΩ // 10pF
Start up time 3ms max
Frequency adjustment ±8ppm min, +1.5 ±1.0V
Phase noise (typ @ 20.0MHz) -54dBc/Hz @ 1Hz
-86dBc/Hz @ 10Hz
-135dBc/Hz @ 1kHz
-151dBc/Hz @ 100kHz
Frequency tolerance @ 25°C ±2.0ppm max, 60mins after reflow

* Will operate within specification on any supply voltage from +2.4 V to +3.6V

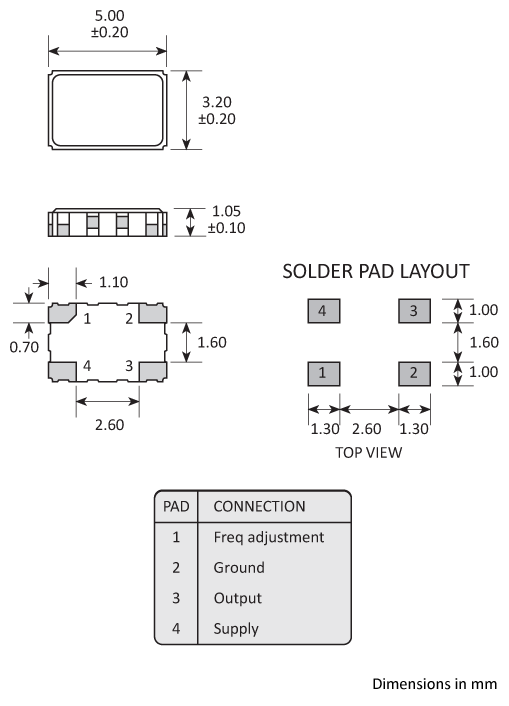

Package Drawing
Package footprint and pad configuration drawing for the Golledge GTXO-83V TCXO showing full dimensions.
Ordering Information

To request a quotation for the GTXO-83V please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

CAD Models

Our GTXO-83V is included in the following design libraries. Click to download the library of your choice.

Marking
Marking
Marking
Soldering Profile
Solder reflow profile
Tape & Reel Specification
Tape and Reel specifications
Handling & Storage

ESD icon Human Body Model (HBM) 1A (250V to <500V)

MSL Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction
  • Ceramic body with gold-plated pads
  • Metal lid, seam sealed
Compliance

Please refer to our DOCUMENTS section for more information.

PB free icon Lead-free (< 0.1% by weight )

ROHS icon RoHS compliant with no exemptions.

REACH icon REACH compliant.

Conflict minerals icon Free of conflict minerals.

Halogen free icon Free from halogens.

Ozone depletion icon Free from ozone-depleting substances.
