GTXO-203T

GTXO-203T

1.8V ~ 3.6V SM TCXO

  • Ideally suited for wearable applications
  • Supply voltages from 1.8V ~ 3.6V
  • Low power consumption
  • Miniature SM package
  • Excellent frequency stability
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Frequency
Frequency stability
J
H
G
E
Temperature range
R
C
N
S
I
Supply voltage (VDD)
Quantity / Special Request

Please specify the quantity you require below.

The GTXO-203T is supplied on tape and reel. 3k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

GTXO-203T temperature compensated oscillator features an ultra-miniature 2016 package with maximum height of 0.8mm.

This TCXO also offers a range of tight frequency stability options, including as tight as ±0.5ppm, and is available with a choice of supply voltages, from 1.8-3.6V. This TCXO also has a choice of operating temperature ranges, including as wide as -40 to +85°C, and comes with exellent ageing characteristics of ±1.0ppm maximum first year as standard.

Specifications
Frequency range 10.0 ~ 70.0MHz
Dimensions 2.0 x 1.6 x 0.8mm
Storage temperature range -40 to +85°C
Supply voltage stability ±0.2ppm, VDD ±5%
Load stability ±0.2ppm, ZL ±10%
Ageing ±1.0ppm max first year
Supply current 1.5~2.0mA max
Output waveform Clipped sine, 0.8V p-p, +DC offset
Test load (ZL) 10kΩ // 10pF
Start up time 3ms max
Harmonics -5dBc max
Phase noise -130dBc/Hz @ 1kHz
Frequency tolerance @ 25°C ±2.0ppm max, 60mins after reflow
Net mass 8.57mg

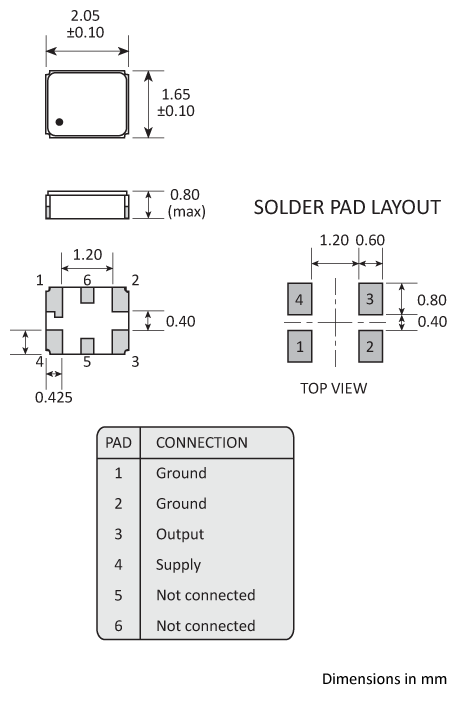

Package Drawing
Footprint
Ordering Information

To request a quotation for the GTXO-203T please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

CAD Models

Our GTXO-203T is included in the following design libraries. Click to download the library of your choice.


Autodesk Eagle

Altium

Pulsonix
Marking
Marking
Soldering Profile
Solder reflow profile for the GTXO-C77V
Tape & Reel Specification
Tape & Reel Specification
Handling & Storage

ESD icon Human Body Model (HBM) 1A (250V to <500V)

MSL Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Ceramic body with gold-plated pads Metal lid, seam sealed

Compliance

Please refer to our DOCUMENTS section for more information.

PB free icon Lead-free (< 0.1% by weight )

ROHS icon RoHS compliant with no exemptions.

REACH icon REACH compliant.

Conflict minerals icon Free of conflict minerals.

Halogen free icon Free from halogens.

Ozone depletion icon Free from ozone-depleting substances.

Documents
