4-pad 5x3 crystal

GRX-530

Miniature Automotive Surface Mount Crystal (AEC-Q200)

  • AEC-Q200 qualified for automotive applications
  • Vacuum seal for excellent long-term stability
  • High reliability at low cost
  • Metal lid can be grounded to minimise EMI
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Frequency
Calibration tolerance
1
P
2
Temperature stability
P
2
5
C
Operating temperature range
4
A
Circuit condition
A
B
D
F
Oscillation mode
F
Quantity / Special Request

Please specify the quantity you require below.

The GRX-530 is supplied on tape and reel. 1k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

The GRX-530 automotive crystal is available in frequencies from 9.80-40.0MHz and comes fully AEC-Q200 qualified as standard.

The miniature ceramic package of the GRX-530 is vacuum sealed for excellent long term stability, and good ageing characteristics. This surface mount automotive crystal solution offers a range of temperature stability, calibration tolerance and circuit condition options, and is highly cost effective at large volume, making it ideal for larger-scale automotive projects.

Each component within our GRX range of automotive-specialist components are available with full PPAP documentation on request.

Specifications
Frequency range 9.80 ~ 40.0MHz
Dimensions 5.0 x 3.2 x 0.9mm
Storage temperature range -40 to +125°C
Static capacitance (C0) 5pF max
Equivalent series resistance 60Ω max (9.80 ~ 10.99MHz)
50Ω max (11.0 ~ 11.99MHz)
40Ω max (12.0 ~ 24.99MHz)
30Ω max (25.0 ~ 40.0MHz)
Ageing ±3ppm max first year
Test drive level 10µW typ, 100µW max
Soldering condition 260°C, 10 sec x2 max
Qualification AEC-Q200 (Automotive)

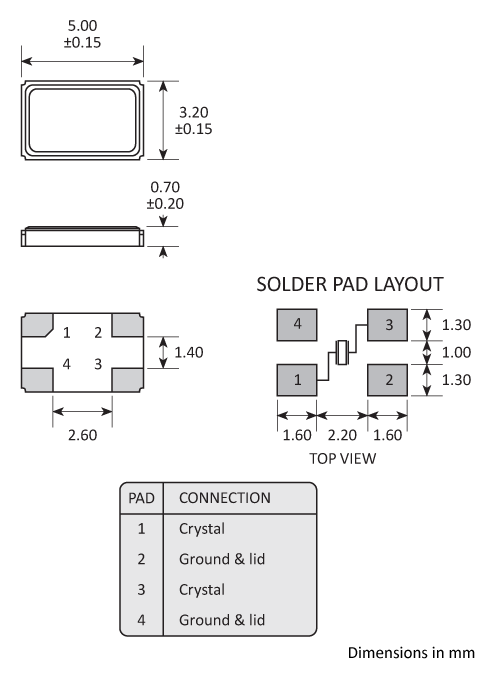

Package Drawing
Package footprint and pad configuration drawing for the Golledge 5x3 Crystal showing full dimensions.
Ordering Information

To request a quotation for the GRX-530 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

CAD Models

Our GRX-530 is included in the following design libraries. Click to download the library of your choice.


Autodesk Eagle

Altium

Pulsonix
Applications
  • Vehicle telematics
  • Connected car
  • Remote keyless entry (RKE)
  • Audio (DAB/Bluetooth)
  • Camera
Marking
Marking
Marking
Soldering Profile
Solder reflow profile

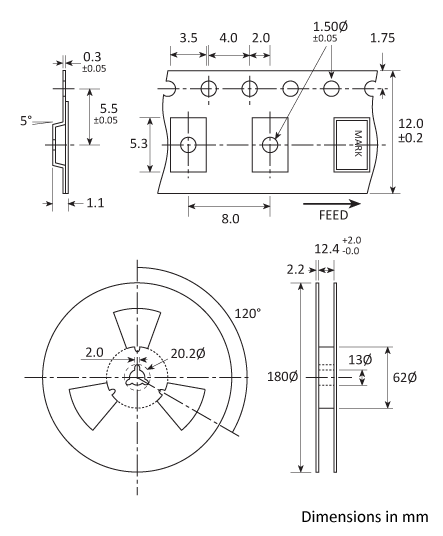

Tape & Reel Specification
Tape and Reel specifications
Handling & Storage

ESD icon Human Body Model (HBM) 1A (250V to <500V)

MSL Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction
  • Ceramic body with gold-plated pads
  • Metal lid, seam sealed
Compliance

PB free icon Lead-free (< 0.1% by weight )

ROHS icon RoHS compliant with no exemptions. See our declaration

REACH icon REACH compliant. See our statement

Conflict minerals icon Free of conflict minerals. See our declaration

Halogen free icon Free of Halogens. See our declaration

Ozone depletion icon Free of Ozone-depleting substances. See our declaration
