1610 Ultra low profile crystal package

CM9V-T1A

Ultra-Miniature 1610 Package 32.768kHz SM Watch Crystal

  • Ultra low profile - 0.5mm
  • Miniature ceramic package with metal lid
  • High shock & vibration resistance
  • Low power consumption
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Calibration tolerance
Operating temperature range
E
M
Circuit condition
Quantity / Special Request

Please specify the quantity you require below.

The CM9V-T1A is supplied on tape and reel. 1k or 3k pcs per reel are the standard T&R pack sizes for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

The ultra-miniature CM9V-T1A is one of our smallest watch crystals and offers a 32.768kHz solution with ultra-low profile package and high shock and vibration resistance.

This tiny surface mount watch crystal is available in automotive and extended operating temperature ranges, and features low drive level of just 0.5uW max.

If you're designing for a high-volume commercial or consumer project and can accept industrial operating temperature range of -40 to +85°C temperature range please consider our GWX-1610 1610 form factor crystal as a more competitive option.

Specifications
Frequency 32.768kHz
Dimensions 1.6 x 1.0 x 0.5mm
Storage temperature range -55 to +125°C
Static capacitance (C0) 1.0pF typ
Motional capacitance (C1) 3.6fF typ
Equivalent series resistance 90kΩ max @ 25°C
Ageing ±3ppm max first year
Drive level 0.5µW max
Turnover temperature (T0) +25°C ±5°C
Frequency / temp coefficient -0.035ppm/°C2 ±10%
Shock resistance ±5ppm, 5,000g, 0.3ms, ½ sine
Vibration resistance ±5ppm, 20g, 10.0 ~ 2,000Hz
Terminations Gold plated pads
Soldering condition Reflow, 260°C, 20 sec max

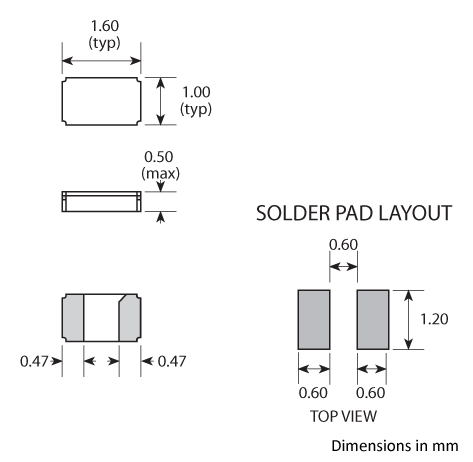

Package Drawing
Package footprint and pad configuration drawing for the Golledge CM9V-T1A Crystal showing full dimensions.
Ordering Information

To request a quotation for the CM9V-T1A please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

CAD Models

Our CM9V-T1A is included in the following design libraries. Click to download the library of your choice.


Autodesk Eagle

Altium

Pulsonix
Tape & Reel Specification
Tape and Reel specifications for the GTXO-C77V

A:178 B:8 C:1.8 D:1.2 E:4 F:0.5 G:61.5 H:21

Handling & Storage

ESD icon Human Body Model (HBM) 1A (250V to <500V)

MSL Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Ceramic base with metal lid

Compliance

Please refer to our DOCUMENTS section for more information.

PB free icon Lead-free (< 0.1% by weight )

ROHS icon RoHS compliant with no exemptions.

REACH icon REACH compliant.

Conflict minerals icon Free of conflict minerals.

Halogen free icon Free from halogens.

Ozone depletion icon Free from ozone-depleting substances.
